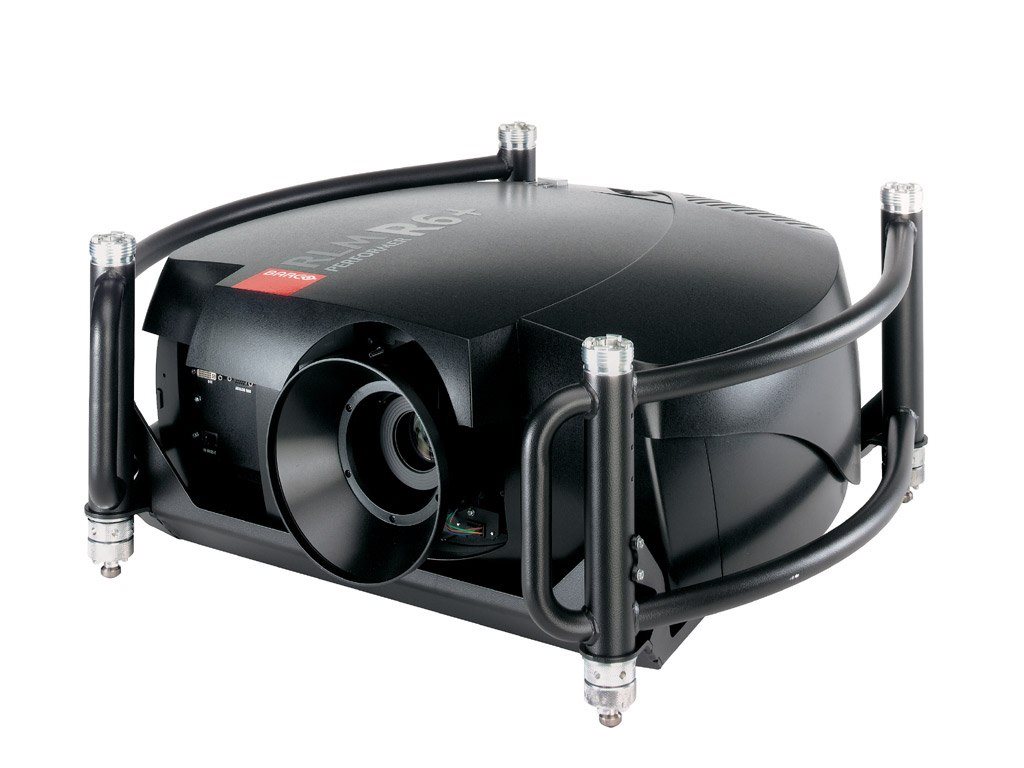

Видеопроектор BARCO RLM R6+Performer

    Подробное описание

    Проектор BARCO RLM R6+Performer (Бельгия)

    Аренда видео проектора на мероприятие по ссылке ШоуТехнологии

    Технические характеристики:

    Light output

    6500 Center lumen
    6000 ANSI Lumen

    Resolution

    1400 x 1050 (native)

    Brightness uniformity

    > 90% for the total screen

    Contrast ratio

    1600:1 (full field)

    Display

    3 Chip DLP SXGA+ (resolution of 1400 x 1050 pixels (aspect ratio 4:3)).

    Convergence

    Max allowed convergence drift is 0.5 pixel.
    This is checked on vertical and horizontal midlines only.
    Corners are not applicable for convergence error.
    This is measure with TLD 1.2 lens on axis.

    Features

    • AutoImage
    • Advanced picture-in-picture
    • Seamless switching with effects
    • Standard light shutter
    • Advanced digital zoom
    • Rigging point
    • Carrying handle
    • Frame
    • P7 color processing

    Picture-in-picture

    Up to 4 sources simultaneously (2 data, 1 video and 1 SDI)

    Inputs

    Fixed inputs

    • 1x Configurable 5-Wire (BNC)
    • 1x Composite Video (BNC)
    • 1x S-Video (4-pin mini-DIN)
    • 1x analogue RGB (D15 connector)
    • 1x SDI/HDSDI (+ loop through)
    • 1x DVI (Digital Visual Interface)

    Outputs

    HDSDI/ SDI loop out

    Communication

    • 1x RS-232C IN (D-9 connector)
    • 1x RS-232C OUT (D-9 connector)
    • 1x RS-232C IN (XLR connector)
    • mini-jack for wired remote control

    Compatibility

    • All current video sources (PAL, SECAM, NTSC) in Composite, S-VHS, Component or RGB formats
    • All currently proposed HDTV, extended and improved television standards (1080i, 720p)
    • All computer graphics formats from VGA, SVGA, XGA, SXGA,full HD to UXGA
    • Most Macintosh computers
    • Electronic workstations with a resolution up to 1600 x 1200 pixels at 75 Hz
    • Most computer sources with a pixel clock up to 200 MHz
    • DVI sources up to SXGA+

    Input source compatibility

    1600 x 1200 (max. input)

    Screen size

    From 1-7m / 3-23ft.recomended

    Scan Frequencies

    Pixel clock >162Mhz (UXGA 60hz)

    Network connection

    Optional (10 base-T)

    Ambient temperature

    Max 40°C (104°F)

    Lamp

    2 x 250 W mercury

    Lamp warranty: 1000 hrs

    Lenses

    Lens



    TLD (HB) 0.8



    TLD (HB) 1.6 - 2.0



    TLD (HB) 2.0 - 2.8



    TLD (HB) 2.8 - 5.0



    TLD (HB) 5.0 - 8.0



    Lens Shift

    Vertical: -10% to +110%
    Horizontal: -50% to +50%
    (small differences occur per lens type)

    Lens encoders

    On zoom and focus (with TLD lenses)

    ScenergiX

    Standard horizontal and vertical electronic edge blending

    Sealed DLP™ core

    Standard

    Dust filters

    Metal filters

    Noise Level

    42 dB(A) (at 40°C)

    Mains Voltage

    92-240 V / 50 - 60 Hz

    Power consumption

    700 W

    Power Dissipation

    Max 2217 BTU/h

    AC power

    90V - 255V
    (50 Hz - 60Hz)

    Weight

    Projector: 25 kg (56 lbs)
    Frame: 5 kg (11 lbs)

    Dimensions

    W x L x H
    705 x 707,8 x 316,5 mm
    (27.8 x 27.9 x 12.5 inch)

    Shipping Dimensions

    Width: 56 cm
    Height: 100 cm
    Depth: 100 cm
    Floor Space: 1 m²
    Volume: 0,56 m³
    Gross Weight: 65 kg

    Safety Regulations

    Compliant with UL1950 and EN60950

    Electromagnetic Interference

    Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A

    Order Information

    Projector body (without lens): R9010270
    Spare dual lamp: R9852940
